Next Gen car – part 1

“Next Gen car – part 1 ” by Valentin Nadolu

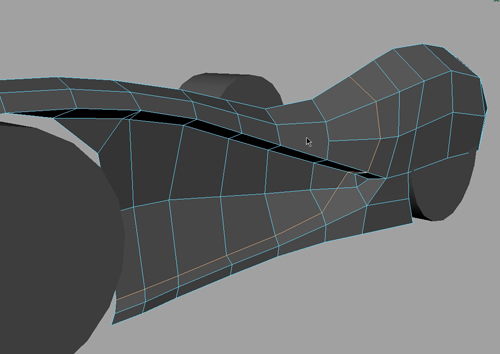

The basic shape can be obtained by extruding the border edges of this geometry. Notice I haven’t extruded the bottom part as it is not necessary to have that area high-res.

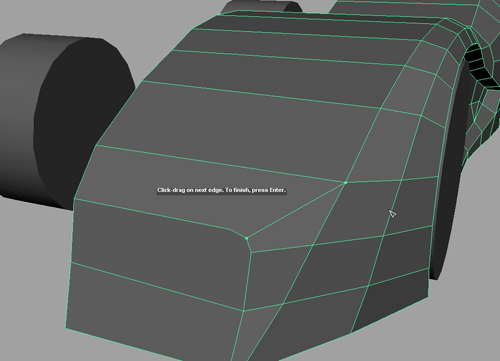

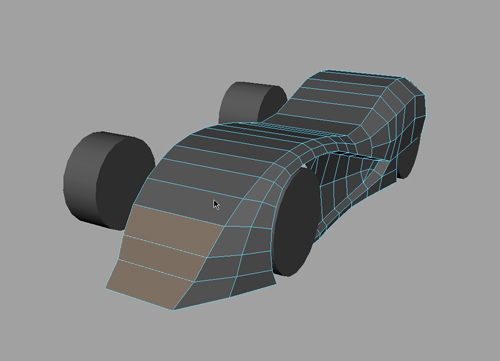

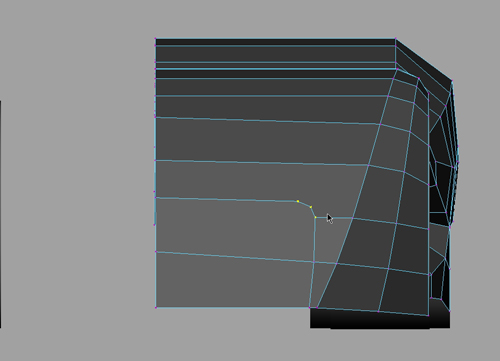

Next is the front air intake, the smaller front side intakes and the basic shape of the headlight:

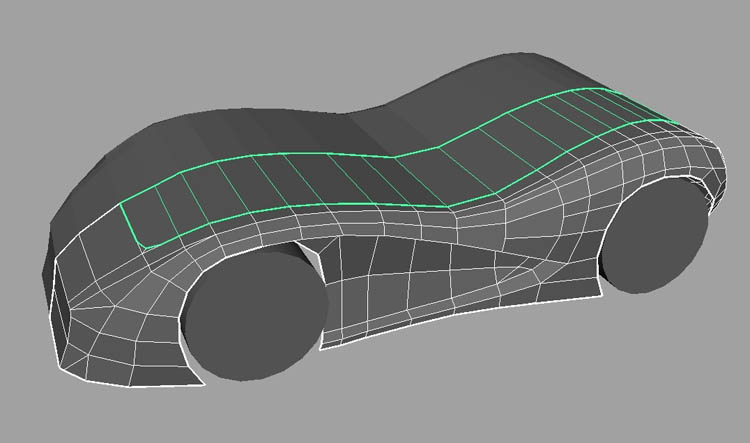

I then cut the shape of the glass roof from the main body geometry. I will use the extracted faces as a base for the roof. To get a better view of the entire car I duplicate the side as an instance and scale it by -1 on the x axis.

Pages: 1 2 3 4 5 6 7 8 9 10 11
