“Caustic effects” by Mario Malagrino

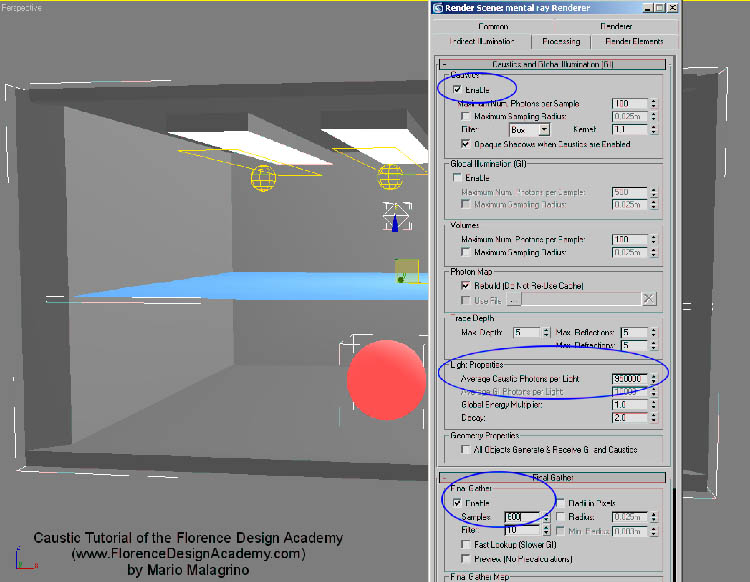

To get a more realistic illumination I have enabled Final Gather in “indirect illumination”. I Put a quite high number in “samples” to make the final rendering (600) (image “4”).
4.)

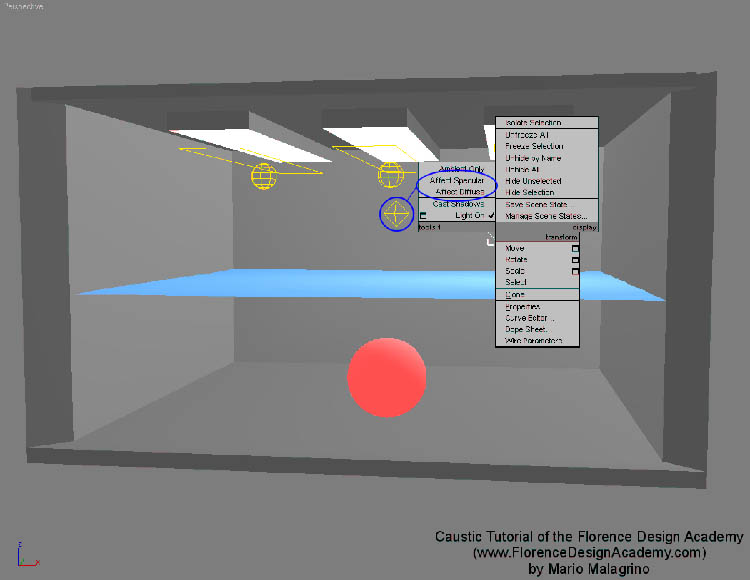

After you made the room you must create the water. We can do that with a simple box. To create the small waves on the surface you have different possibilities (or with a material or by polygons). For a transparent water material create a “Raytrace” material (it must be transparent and a bit reflective). To create a wave effect put in the “bump map” a “noise”-map with a quite small size; to simulate trough geometry deformation the noise/wave effect you must apply to the box a “noise modifier”. The wave size will influence the caustic shapes. Big waves/noise = Big caustic shapes ! After you made all the objects you must create a “MR.Area Omni” light on the top of the water in the center of the room like on image “3”. Now make a right mouse button click on the MR. Area Omni and disable “AFFECT SPECULAR” and “AFFECT DIFFUSE” like on image “5”.
5.)

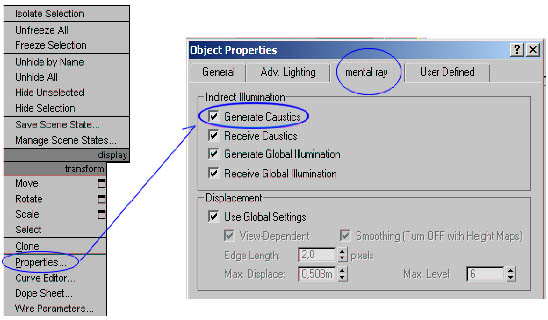

After this step this MR.Area Omni will NOT anymore affect the illumination of the room. We will use that MR.Area Omni ONLY to create the caustic effects. In this way we have much more control of the caustic position ,color and brightness. Disable shadows in the MR.Area Omni. Now select the MR.Area Omni and all other objects except the lights that you have created for illumination ( Free area lights). Make a right mouse button click on all the selection and select properties like on image “6”.
6.)
7.)
Go on the “Mental Ray” panel and check “GENERATE CAUSTICS”.This is necessary in order to have a caustic effect on the objects. Now we must go to the “INDIRECT ILLUMINATION” panel ( panel for rendering – image”4″).and enable “CAUSTICS”. To improve the quality of the caustics ( better/clearer shapes ) you must go to “LIGHT Properties” and put a VERY high number in “AVERAGE CAUSTIC PHOTONS PER LIGHT”.I put a bit less than one million. For test renderings it is enough to put 10.000. The higher the number, the better will be the effect. Of course it will take much more time to render all the scene. You can put very high numbers in multiplier (MR.Area Omni) to create a very bright caustic effect. If you change the light color of the MR.Area Omni you will change the color of the caustics ( blue omni color = blue caustics). To have a blue color of the illumination under water the water material should have a blue color in diffuse and transparency like on image “7”.
I Hope you liked this tutorial.
(c) Mario Malagrino, www.MarioMalagrino.com
